Overview:

• EU certification
• 400V maximum voltage
• 16A current
• up to 11KW power
• Plug type 2 with 5m cable
• perfectly informed due to integrated LCD display
• LED charge indicator
• noble glass front
• Controllable also via APP (via Bluetooth)
• Protection against splashing and rain water with IP54 certification
• For indoor and outdoor use
• Wall or column mounting
• RFID card reader for authentication
• Bluetooth integrated
• APP control for iOS and Android



Technical Data:

• Charging capacity: up to 11 KW
• Input/output power: 400V AC ± 20%, 50/60Hz, 16A, 3-phase power cable required ​
• Residual current circuit breaker: 400V~ GB/T10963.1 / IEC60898-1 TGB1N-63 C40
• Standby power: <3W
• Measurement accuracy: 1%
• Communication: Bluetooth
• Control: manually or via APP
• User interface: LCD Display 3.5"
• RFID: Mikron Fare Collection System ISO & IEC 14443A
• Certification: CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 ​
• Charging interface: plug type 2, cable: 5m
• Protection classes: IP54, IK10
• Housing: PC940 plastic, galvanized steel ​
• Front panel: Tempered glass ​
• Protection functions: Overcurrent protection, residual current protection, grounding protection, over/under voltage protection, over/under frequency protection, over/under temperature protection. ​
• Mounting: wall or column mounting
• Cooling: natural cooling
• Operating temperature: -30°C to +55°C
• Humidity: max. 95%
• Product dimensions: 320mm x 230mm x 100mm (LxWxD)
• Net weight: approx. 5.1kg

Scope of delivery:

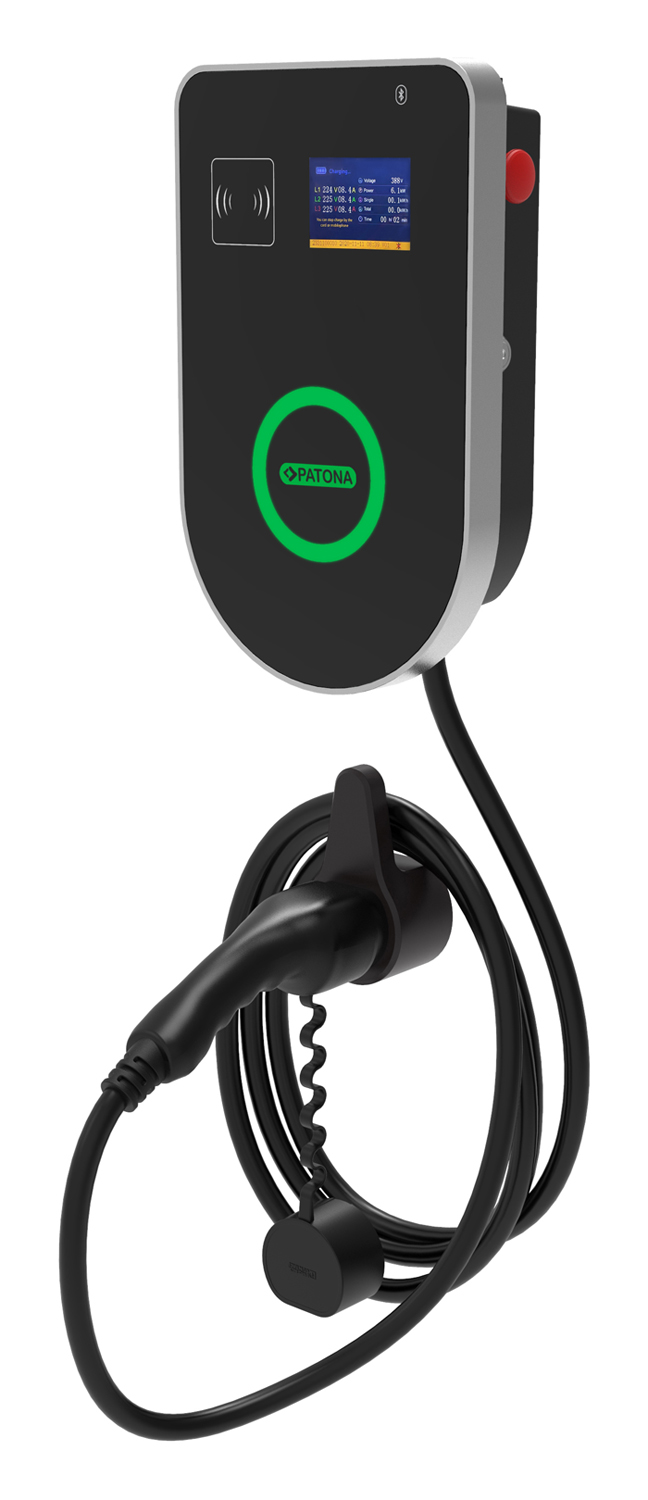

• PATONA Wallbox WB1-11
• Operating/installation instructions via QR code
• Quick guide
• Holder for charging gun and cable
• Screws, dowels
• 2 RFID-Cards
• 2 keys
• Stand is not included in the scope of delivery.
• This can be ordered optionally as an accessory
