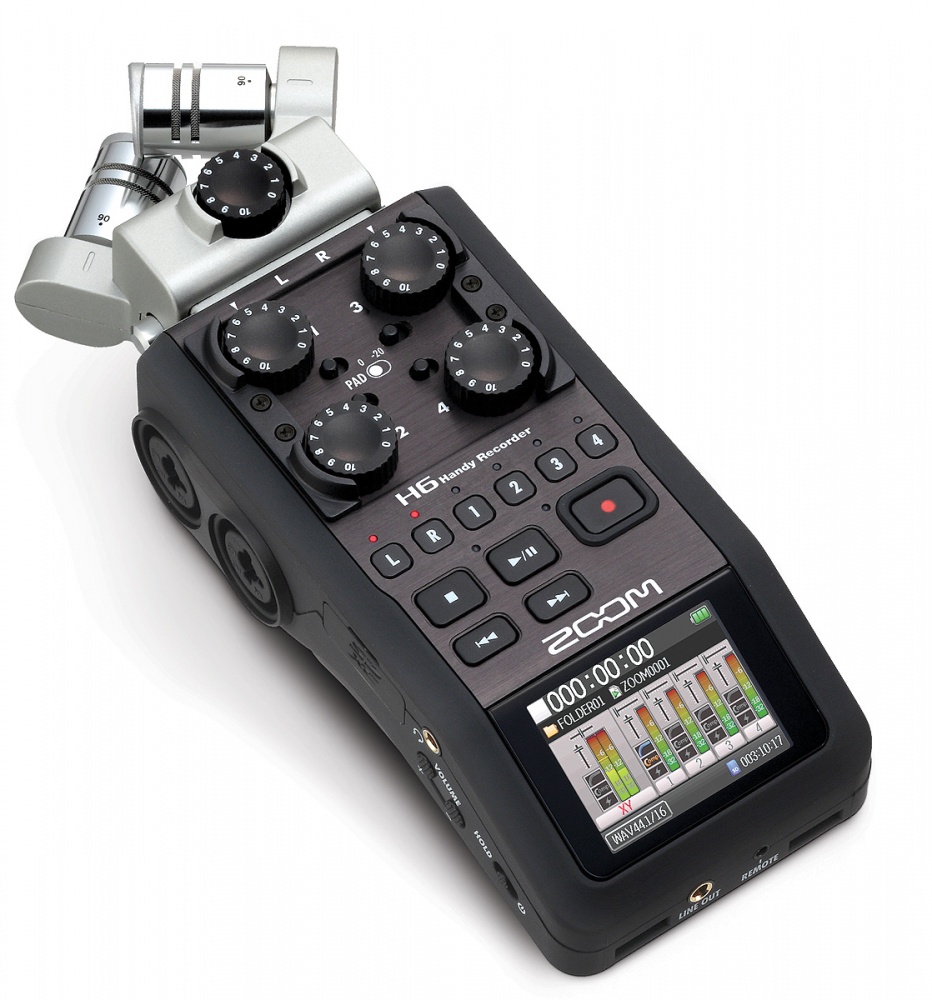

ZOOM H6

Proizvođač: ZOOM
Šifra Proizvoda: 5567

Zoom H6 recorder je prenosivi snimač zvuka kompaktnih dimenzija koji pruža simultano snimanje na četiri traka i odlikuje se izmenjivim modularnim sistemom mikrofona. Sa njim, između ostalog, dolazi XY (XYH-6) stereo mikrofon modul, koji se sastoji od dva jednosmerna mikrofona koji se montiraju pod uglom od 90 ili čak 120 stepeni jedan u odnosu na drugi i opremljen je ugrađenim anti-šok sistemom (neutrališe nepoželjan zvuk prilikom upotrebe). Za situacije kada Vam je potreban stereo zvuk i kada želite zvuku da date širinu, XY mikrofon se može odmeniti MSH-6 bočnim mikrofon modulom, koji se sastoji od jednosmernog mikrofona koji je usmeren napred (tj. prema sredini) i dvosmernim mikrofon setom koji je normalan na njega (tj. usmeren prema boku). Modular Mic and Input System Includes XY Microphone Module Includes Mid-Side Microphone Module Four XLR/TRS Inputs Record up to 6 Simultaneous Channels Record up to 24-bit/96kHz Audio Doubles as USB Audio Interface Uses SDXC Memory Cards Optional Shotgun Mic and XLR/TRS Inputs Optional Hot Shoe Mount

Dostupnost: Nema na stanju
€ 360,00€ 335,00

Modular Mic and Input System
Includes XY Microphone Module
Includes Mid-Side Microphone Module
Four XLR/TRS Inputs
Record up to 6 Simultaneous Channels
Record up to 24-bit/96kHz Audio
Doubles as USB Audio Interface
Uses SDXC Memory Cards
Optional Shotgun Mic and XLR/TRS Inputs
Optional Hot Shoe Mount

Zoom H6 specs

Recorder
Recording Media SD card: 16 MB to 2 GB
SDHC card: 4 GB to 32 GB
SDXC card: 64 GB to 128 GB
Input Connections 4 x XLR/TRS combo jacks; XLR: Pin 2 hot; TRS: Tip hot
1x 1/8" stereo mini jack (XYH-6 MIC/LINE IN)
Input Gain -∞ to 55.5 dB (PAD OFF)
-∞ to 35.5 dB (PAD ON)
Input Level -∞ to 46.5 dB (XYH-6 MIC/LINE IN)
Input Impedance 6.8 kΩ (INPUTS 1 to 4)
2 kΩ (XYH-6 MIC/LINE IN)
Maximum Input Level +22 dBu, PAD ON (INPUTS 1 to 4)
Phantom Power +12V /+24V /+48V, independent (INPUTS 1 to 4)
2.5V plug-in power, (XYH-6 MIC/LINE IN)
Equivalent Input Noise -120 dBu or less
Output Connections 1x 1/8" stereo mini jack (LINE OUT)
1x 1/8" stereo mini jack (PHONE OUT)
Output Level -10 dBu when output load impedance is 10 kΩ or more (LINE OUT)
20 W +20 W into 32 Ω load (PHONE OUT)
Built-in Speaker 400mw 8 Ω mono speaker
Recording Formats WAV, MP3
Sample Rate 44.1/48/96 kHz (WAV)
44.1 kHz (MP3)
Bit Depth 16, 24 (WAV)
Bit Rate 48/56/64/80/96/112/128/160/192/224/256/320 kbps (MP3)
Max Simultaneous Recording 8 (L/R + INPUT 1 to 4 + L/R backup), backup recording: -12dB lower than set L/R input gain (WAV)
-or-
2 (MP3)
Recording to SD Card With 2 GB card:
03:08:00 (44.1 kHz / 16-bit WAV)
34:43:00 (128 kbps MP3)
Display 2.0-inch full color LCD (320 x 240 pixels)
USB Port Mass Storage Class operation:
USB 2.0 high speed
-or-
Audio Interface operation, multi-track mode:
USB 2.0 high speed, multi-track or stereo modes
Power Requirements AA size (LR6) battery x 4
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
Battery Life Over 20 hours (with alkaline battery, continuous recording)
Dimensions 3 x 6 x 1.9" (77.8 x 152.8 x 47.8 mm)
Weight 9.9 oz (280 g)
Microphone
Type XYH-6 X/Y: Unidirectional
MSH-6 MS: Unidirectional and bi-directional
Sensitivity XYH-6 X/Y: -41 dB, 1 kHz at 1 Pa
MSH-6 MS: -37 dB, 1 kHz at 1 Pa (unidirectional);
-39 dB, 1 kHz at 1 Pa (bi-directional)
Input Gain XYH-6 X/Y: -∞ to 46.5 dB
MSH-6 MS: -∞ to 42.5 dB
Maximum SPL XYH-6 X/Y: 136 dB SPL
MSH-6 MS: 120 dB SPL (unidirectional)
122 dB SPL (bi-directional)
Dimensions XYH-6 X/Y: 3.1 x 2.4 x 1.8" (78.9 x 60.2 x 45.2 mm)
MSH-6 MS: 2.3 x 2.66 x 1.65" (58 x 67.6 x 42.1 mm)
Weight XYH-6 X/Y: 4.6 oz (130 g)
MSH-6: 3 oz (85 g)
