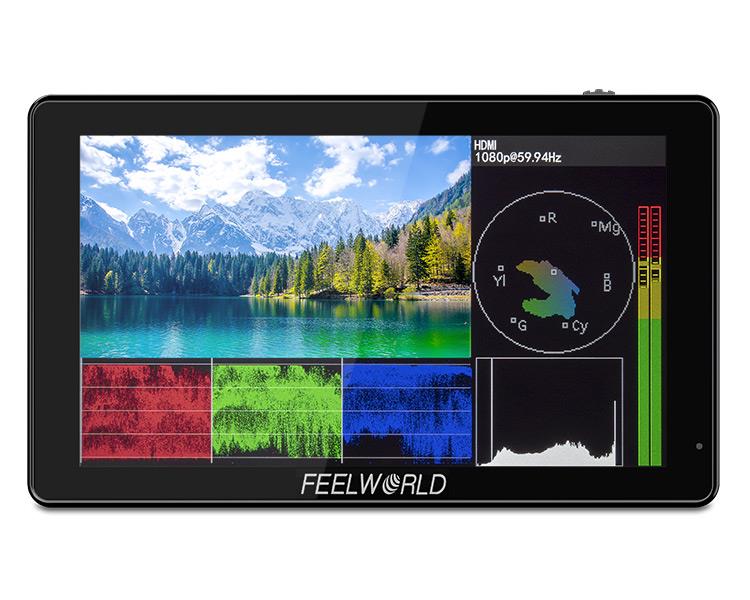

FEELWORLD LUT5 5.5" Ultra High Bright 3000nit Touch Screen DSLR Camera Field Monitor
| Proizvođač: | FEELWORLD |
| Šifra Proizvoda: | 8217 |
Display Spec.
| Model | LUT5 |
| Screen Size | 5.5" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (L) x 0.069(W) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 3000cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
| 1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. |
Audio
| Audio | 3.5mm Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤20W |
| Working Temperature | -20°C~70°C |
| Storage Temperature | -30°C~80°C |
| Install Way | 1/4"-20 Thread Socket ( Right, Bottom) |
| Unit Size | 142Lx86Hx28D(mm) |
| Unit Weight | 270g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 7.5kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
| * Support 3D LUT Log to Rec.709, user 3D LUT Upload |
| * Support Touch Menu |
| * Parade (RGB, YUV, Y) |
| * All Waves |
| * Vector |
| * RGB Histogram |
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) |
| * False Colors |
| * Zebra Exposure (1%~100% adjustable) |
| * Check Field (Red, Green, Blue, Gray) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1) |
| * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
| * Marker Color (red, green, blue, white, black, yellow) |
| * Color Temperature Adjustment (5600K, 6500K, 9300K, user) |
| * Nine Grid |
| * Zoom (100%~500%) |
| * Aspect Ratio |
| * Pixel to Pixel |
