FEELWORLD LUT7S PRO


Proizvođač: FEELWORLD
Šifra Proizvoda: 7994

Ultra Bright HDMI / 3G-SDI Field Monitor with F970 Plate


Dostupnost: Na stanju
€ 430,00

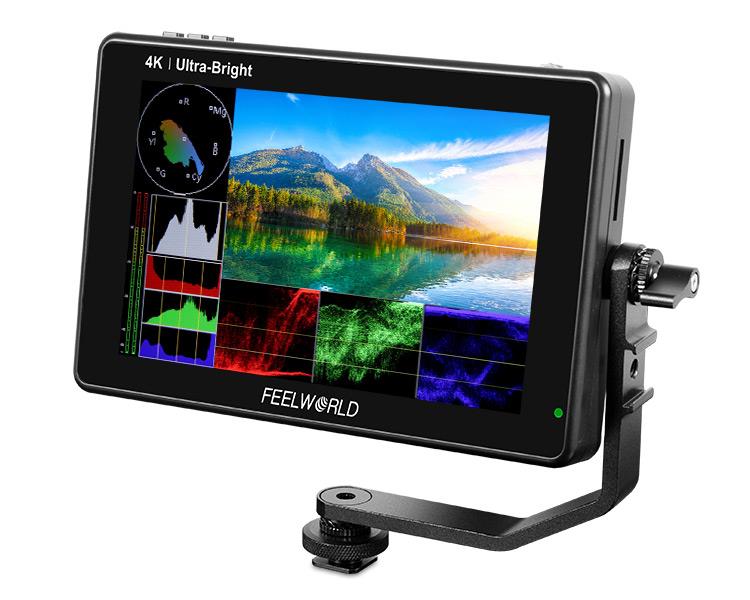

The LUT7S PRO 7" Ultra Bright HDMI/3G-SDI Field Monitor from FeelWorld features a sharp 323 ppi display and supports SD, HD, UHD, and DCI 4K video. This HDMI monitor has an integrated L-series battery slot and comes with a dummy battery plate that allows you to mount and power optional accessories, such as wireless transmitters or receivers with an L-series battery slot. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast.

On the bottom edge of the monitor, you'll find HDMI and SDI input and output connections, with the headphone output residing on the edge. Along the bottom edge is a 1/4"-20 threaded mounting hole and power output port, while control buttons reside along the top edge of the monitor.

The LUT7S PRO supports custom 3D LUTs to accurately view the camera color on screen, uploaded via an integrated SD card slot on the side, and it supports professional Rec. 709 color calibration technology. A variety of image evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Key Features

  • High-resolution 1920 x 1200
  • High contrast of 1200:1
  • Ultrabright 2200 cd/m²
  • 160° wide-view-angle IPS Panel
  • Histogram
  • Peaking focus assist (red, green, or blue highlight over focused image)
  • False color
  • Zebra exposure
  • Nine-grid
  • Embedded audio
  • Scan mode (underscan, overscan)
  • Zoom (4x, 9x, 16x)
  • Anamorphic mode (1.3x, 2x, 2x mag)
  • Pixel-to-pixel
  • Center marker
  • Safe area (80, 85, 90, 93, 96%, 2.35:1)
  • Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Marker color (red, green, blue, white, black)
  • Check field (red, green, blue, mono)
  • Image flip (H, V, H/V)
  • Image freeze
  • Color temperature adjustment

Accessory Mounting and Power

The L-series mounting plate allows you to directly attach and power accessories, such as a wireless transmitter or receiver, to the back of the monitor using the accessories L-series battery slot.

Battery

The single rear battery slot is compatible with Sony L-series batteries.
FeelWorld uses the professional Rec. 709 HD color standard and is calibrated at the factory. It can achieve monitor calibration efficiently and get accurate color reproductions easily, showing the image when you shoot without distorting the color.
The menu controls are intuitive and easy to use via the touchscreen. Two different feature buttons are programmable to the various features you use the most.
The compact design includes 4K HDMI and 3G-SDI input/output, so you can connect them to 4K cameras and DSLRs. The HDMI connection is compatible with up to 4K24.
Load custom 3D LUTs using the integrated SD card slot.
Histogram is a quantitative tool to check the picture brightness.
The audio level meters provide numerical indicators and headroom levels.
The peaking filter displays a colored highlight on the screen where sharp edges appear.
Built-in selection of no-squeeze, 1.3x, or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in-camera.


FeelWorld LUT7 PRO Specs

Display

Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Contrast Ratio 1200:1
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 323 ppi
Image Controls Anamorphic De-Squeeze, Blue Only, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Red Only, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

I/O

Video 1 x HDMI Type A Input
1 x BNC (3G-SDI) Input
1 x HDMI Type A Output
1 x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x 3.5 mm Barrel (8 VDC) Output
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None

Format Support

Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 25
480p: 29.97
576i: 50
480i: 59.94
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576i: 50
480i: 59.94

Power

DC Input Power 7 to 24 VDC at 2 A
Battery Type 1 x L-Series
Power Consumption 20 W

Mounting

Mounting 3 x 1/4"-20 Female

Environmental

Operating Temperature -4 to 122°F / -20 to 50°C
Storage Temperature -22 to 140°F / -30 to 60°C

General

Dimensions 7.5 x 5 x 1.1" / 190 x 126 x 27 mm
Weight 15.9 oz / 450 g
