Proizvođač: | Panasonic |
Šifra Proizvoda: | 4197 |

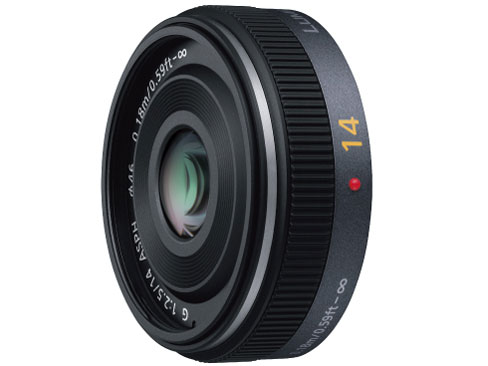

Panasonic G 14mm / F2.5 ASPH
Tracking focus in video recording with silent auto focus and exposure control
The firmware update to ver. 1.1 is recommended for more comfortable HD video recording.
http://panasonic.jp/support/global/cs/dsc/
For the lenses distortion compensation available, the horizontal axis of MTF is the distance from the center, which is compensated accordingly.
Model No. | H-H014 |
---|---|
Lens Construction | 6 elements in 5 groups (3 aspherical lenses) |
Mount | Micro Four Thirds mount |
Optical Image Stabilizer | - |
Focal Length | f=14mm (35mm camera equivalent 28mm) |
Aperture Type | 7 diaphragm blades / Circular aperture diaphragm |
Aperture | F2.5 |
Minimum Aperture | F22 |
Closest Focusing Distance | 0.18m / 0.59ft |
Maximum Magnification | Approx. 0.10x / 0.20x (35mm camera equivalent) |
Diagonal Angle of View | 75° |
Filter Size | φ46mm / 1.81inch |
Max.Diameter | φ55.5mm / 2.19inch |
Overall Length | Approx. 20.5mm / 0.81inch (from the tip of the lens to the base side of the lens mount) |
Weight | Approx. 55g / 1.94oz |
Standard Accessories | Lens cap, Lens rear cap, Lens storage bag |
