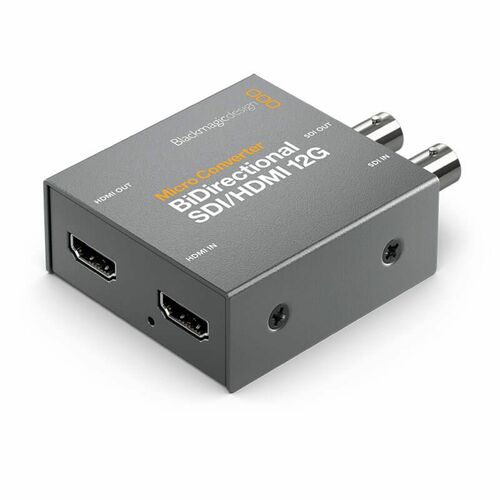

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
| Proizvođač: | Blackmagic Design |
| Šifra Proizvoda: | 8156 |
POZOVITE ZA CENU
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
Blackmagic Design Micro Converter Specs
Input
| Video Input Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | HDMI SDI |
Output
| Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI SDI |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Version 2.2 |
| HDR Compatibility | Not Specified by Manufacturer |
Connectivity
| Other I/O | 1 x USB Type-C Firmware Input (Shared Power) |
| Expansion Slots | None |
Hardware
| Tally Light | Yes |
| OS Compatibility | macOS 10.15.15 or Later Windows 11.1 or Later |
Power
| Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
| Power Consumption | Device: 5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
