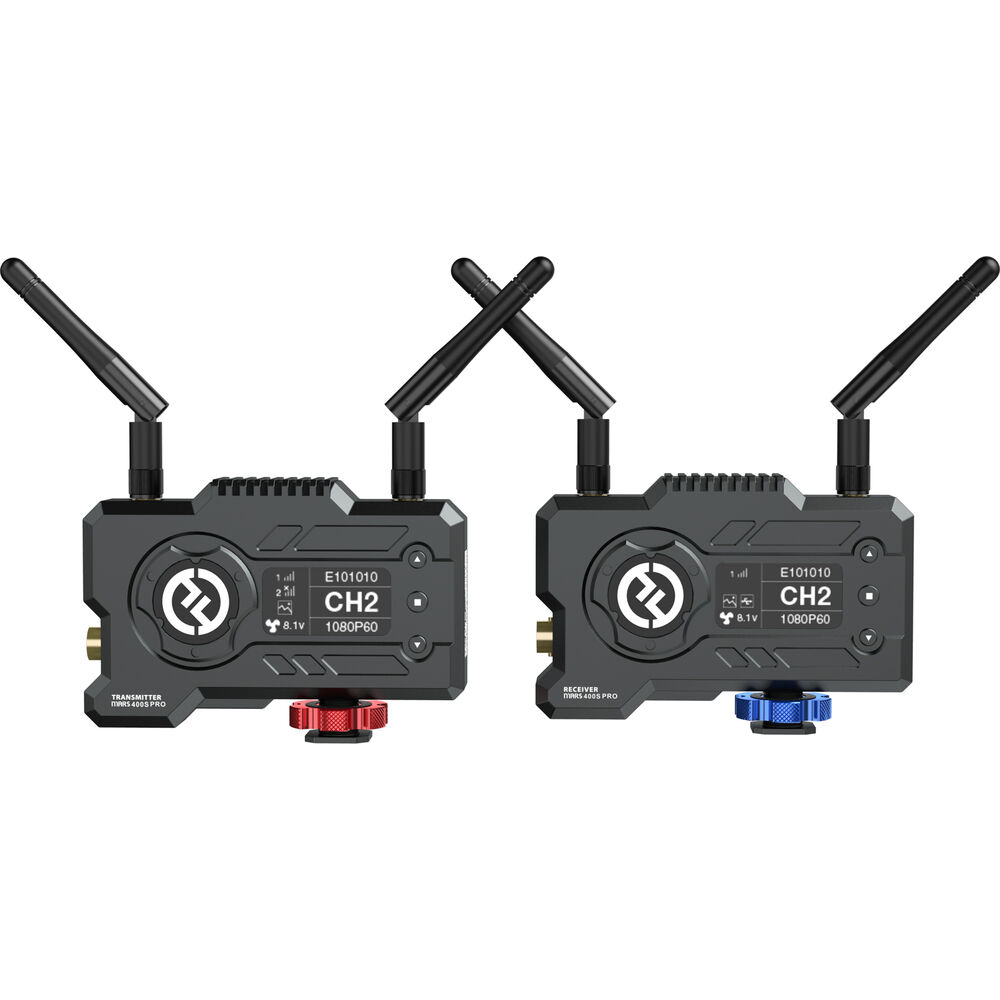

HOLLYLAND Mars 400S PRO
| Proizvođač: | HOLLYLAND |
| Šifra Proizvoda: | 8067 |
SDI/HDMI Wireless Video Transmission System
- Transmitter and Receiver Set
- Transmit up to 1080p60 Video
- Transmit up to 400' to RX, 300' to App
- SDI and HDMI Inputs and Outputs
- L-Series Battery/USB Type-C/DC Power
- OLED Display, Low-Battery Warning
- Extremely Low 0.1s Latency
- Shoe Adapter & 1/4"-20 Mounting Thread
Hollyland Mars 400 Pro Specs
Wireless
| Wireless Range | 400' / 121.92 m (Line-of-Sight) 300' / 91.4 m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | US: 5 GHz |
| Latency | 0.1 sec |
| RF Power | < 21 dBm |
| RF Sensitivity | -80 dBm |
| Wireless Video Compression | Uncompressed |
Interfaces
| Transmitter Antenna Ports | 2 x RP-SMA Male |
| Receiver Antenna Ports | 2 x RP-SMA Male |
| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input 1 x HDMI Input |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Transmitter Other I/O | 1 x USB Type-C |
| Receiver Other I/O | 1 x USB Type-C |
| Embedded Audio | HDMI/SDI |
Format Support
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25 fps 720p at 50, 59.94, 60 fps HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps |
Display
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
Power
| Transmitter Built-In Battery | None |
| Receiver Built-In Battery | None |
| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
| Transmitter Power Connector | 1 x Barrel (6 to 16 VDC up to 2 A) Input 1 x USB Type-C (5 VDC up to 2 A) Input |
| Receiver Power Connector | 1 x Barrel (6 to 16 VDC up to 2 A) Input 1 x USB Type-C (5 VDC up to 2 A) Input |
| Transmitter Power Consumption | Power Supply: 6 to 16 VDC (11 W) |
| Receiver Power Consumption | Power Supply: 6 to 16 VDC (7 W) |
General
| Transmitter Mounting | 1 x 1/4"-20 Female 1 x Cold Shoe |
| Receiver Mounting | 1 x 1/4"-20 Female 1 x Cold Shoe |
| Transmitter Dimensions | 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm |
| Receiver Dimensions | 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm |
| Transmitter Weight | 0.5 lb / 206 g |
| Receiver Weight | 0.5 lb / 206 g |
