BOYA BY-AM1
| Proizvođač: | BOYA |
| Šifra Proizvoda: | 8040 |

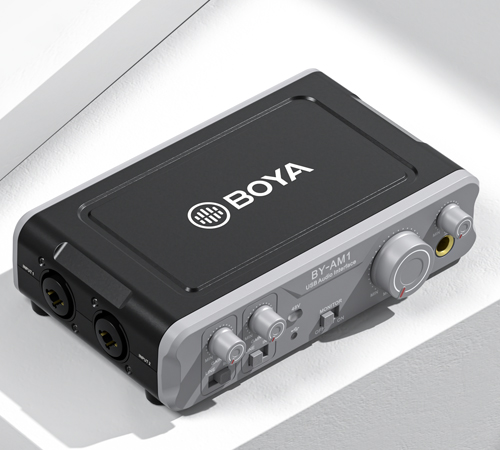

Dual-Channel Audio Mixer
€ 115,00
Product Highlights:
• Dual-channel audio mixer for dynamic/condenser
XLR mics, line-level or instrument signals.
XLR mics, line-level or instrument signals.
• Compatible with computers, laptops, speakers.
• No-latency headphone monitoring (Includes 6.35mm
to 3.5mm TRRS adapter).
• 6.35mm/XLR combo inputs, 6.35mm audio outputs.
• USB 2.0 connection.
• Supply 48V phantom power via XLR input.
• 1/4"threaded hole for tripod mounting.
• No-latency headphone monitoring (Includes 6.35mm
to 3.5mm TRRS adapter).
• 6.35mm/XLR combo inputs, 6.35mm audio outputs.
• USB 2.0 connection.
• Supply 48V phantom power via XLR input.
• 1/4"threaded hole for tripod mounting.
The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58), which allows you to easily mount and control input devices, and to transmit the output signal to your computer.
Multiple Built-in Inputs Enriching Your Audio
Thanks to built-in 6.35mm/XLR combo inputs, The BY-AM1 can easily accept signal directly from XLR microphones or electric instruments, like guitar and bass etc.
Wider Sampling Rates For Your Professional Need
The BY-AM1 can support 44.1k-192kHz sampling rates audio without any sound compromise, when connecting to XLR microphone and instruments input devices.
No-latency Headphone Monitoring
With 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, The BY-AM1 allows you hear your input signal through the headphone without any distracting echo or latency.
Supply 48V phantom power via XLR input
The BY-AM1 can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to tripod and other accessories.
Multiple Built-in Inputs Enriching Your Audio
Thanks to built-in 6.35mm/XLR combo inputs, The BY-AM1 can easily accept signal directly from XLR microphones or electric instruments, like guitar and bass etc.
Wider Sampling Rates For Your Professional Need
The BY-AM1 can support 44.1k-192kHz sampling rates audio without any sound compromise, when connecting to XLR microphone and instruments input devices.
No-latency Headphone Monitoring
With 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, The BY-AM1 allows you hear your input signal through the headphone without any distracting echo or latency.
Supply 48V phantom power via XLR input
The BY-AM1 can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to tripod and other accessories.
Packling list
-6.6'(2m)USB-A to USB-B cable
-6.35mm to 3.5mm TRRS audio adapter
Specifications
| Microphone Inputs | Line Inputs | Instrument inputs | |
| Frequency Response: | 20Hz-20kHz±0.1dB | 20Hz-20kHz±0.1dB | 20Hz-20kHz±0.1dB |
| THD: | / | / | |
| S/N | / | / | |
| Maximum Input Level: | 9dBu(at minimum gain) | 15dBu(at minimum gain) | 8dBu(at minimum gain) |
| Gain Range: | / | 50dB | / |
| Impedance: | / | 47KΩ | / |
| Headphone outputs | Line/monitor outputs | |
| Frequency Response: | 75dB | 80dBU |
| THD: | ＜0.01% | ＜0.01% |
| S/N | 6dBu | 10dBu |
| Maximum Input Level: | ＜10Ω | 470Ω |
| Sampling Rates: | 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz | / |
| USB Connection | USB 2.0(USB-B connector) | / |
| Power Requirements: | Powered by computers | / |
| Power Supply: | 48V PhantomPower | / |
| Dimensions: | 160*105*41.5mm(6.3*4.1*1.6) |
| Weight | 408.5g(1.44oz) |
