Once considered a luxury and now a must have production tool, our PROAIM camera stabilizing systems provide directors and operators creative opportunities unheard of just a few years ago. Mirroring the advancements in DSLR's and pro camcorders, our design and engineering teams went to work to create an all-new sophisticated platform for image capture. The results of their effort, has made our Magic FM Kit an instant success. When it comes to quality - design and engineering come to us.

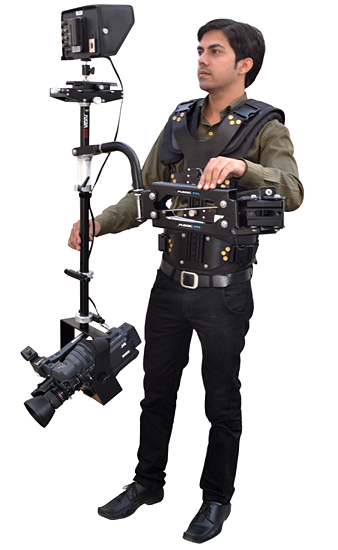

Our stabilization system works by isolating the user's body motion from the camera, while the camera is balanced in a relatively inert and isolated state. We use the title Magic Arm FM to describe the Front Mounting system whereby the Arm distributes the rig weight over your body providing hours of fatigue free shooting.

• Fully adjustable Universal Head for precision balance.
• Highly sophisticated gimbaled mechanism prevents angular deviation when shooting.
• Adjustable broad weight plate on steel rails allows heavier camera balance.
• Ball tilt head for LCD monitor mounting.
• Quick release plate for easy camera mount and removal.
• Brick Battery mount provided.
• Wheelbarrow bearing gives rotational control on camera axis.

UNIVERSAL CAMERA MOUNT PLATE : The Camera Base plate has both 1/4" and 3/8" mounting slots (holes) to accommodate a variety of camera bases. Adjustments are easy to perform for bothhorizontal and vertical axis by means of thumbscrews. BALANCING SECTION : The base of the stabilizing system is constructed of heavy aluminum with steel rods that support the balancing weights. Aluminum weight plates sit on stainless steel and are housed in weight cups which are screwed onto the aluminum weight plates, all designed to fine tune adjustments to balance your camera. The stalk is capable of mounting a LCD monitor on either side of the Flycam 6000. GIMBAL : A Wheelbarrow bearing provides Rotational camera controlallowing easy axis rotation. You can easily move whole steadicam up and down the stalk when using the angle bracket for adjustment.

MAGIC ARM-FM incorporates our advanced engineering and precision machining making it lightweight, strong and the most sophisticated system in it's price range providing fluid moving shots and increased cinematic capability. When the cameraman moves, the base of the arm moves as well. But the spring system in the rest of the arm responds to the weight of the sled. Instead of a sharp jolt, the camera shifts its position smoothly. Should the body of the cameraman jerk,the camera will still glide even in low mode video shots.

CONNECTING PIN FOR FLYCAM ATTACHMENT : This 12.8mm machined connection pin attaches the Flycam handle. ARM SOCKET CONNECT TO VEST : Solid Arm,non-slip vest connector pins, securely joins the arm to the vest . SPRING TENSIONER ADJUSTMENT : Changes the tension to allow reverse arm settings for high, medium and low angle shots.

This Vest includes a contoured chest pad, torso-gripping 4-point buckle system, and a height-adjustable chest plate. Our lightweight, cool body vest supports the upper torso, making it possible to fly cameras for extended fatigue free periods.

LEFT AND RIGHT SIDE ARM MOUNTING : The arm can be attached to either the right or left side of the vest depending upon the operator's preference. It also has the capability for further adjustment within the mount. CHEST PLATE : Constructed from aluminum for strength and lightweight and covered with an anodized black coating. Stainless Steel screws are used to lock the chest plate. ADJUSTABLE BODY VEST : To custom fit the vest to different operator body types, there are two adjusting knobs that allow for vertical fine-tuning. Once adjusted properly for a comfort fit, you can set it and forget it.

LOW MODE CAMERA CAGE : Our Low Mode Camera Cage is meant for taking extreme/medium low angle shots with the stabilization system. It has a Tilting Adjustment to accommodate creative framing.

The LCD provided in the Combo Only has AVI Port. ( The PRO-LCD-003 does not has hdmi port)

• Male RCA jacks for a direct connection to your camera without adapters!
• 16:9 or 4:3 Adjustable Display widescreen
• Compatible with most Digital SLR and HD DV Cameras including Sony, Nikon,
• Canon, Panasonic, JVC....
• Headphone jack
• High output stereo speakers
• Full functional Remote control
• NTSC & PAL Compatible
• Battery attachment on back of LCD itself
• LCD stand for tabletop mounting
• 360 degree swivel mount
• Antenna Mounting
• Attaches to camera's accessory shoe
• On-board AV input
• Chargeable Battery of 2300 mAh
• Video System : PAL/SECAM/NTSC
• Sound System : BG/DK/I/M/N
• Screen : Color TFT LCD
• Screen Size: 7 inches
• Audio Output: 1W (MAX)

Back lightdevice: LED & high brightness cold cathode fuorescent tube.

1, RF IN JACK
2, HEADPHONE JACK
3, AV IN JACK
4, DC 7.2V IN JACK

1, AC DC Adapter
2, 7.2V Li-ion

This LCD is Non-HDMI and will not work with HD cameras which only have hdmi connection. You can use this LCD with your camera with the help of HDMI TO 3-RCA AV AUDIO VIDEO COMPONENT CONVERT CABLE.(Which is not included in this kit)

When you use this kit, you come to know how useful this kit for your videos...

COLLAPSABLE TRIPOD STAND : Easily portable, for transportation, the legs of the tripod stand when folded can be stored in a little space. Durable, long life construction and traditional rise, it is perfect for the professional / amateur videographer or the consumer who is looking for a high quality tripod. After the pack up, fold the stands up flat for easy transport and convenient storage. DOCKING BRACKET : Made of black anodized aluminum, the docking bracket is solid enough to easily hold the weight of your Stabilization system.

EXCLUSIVE of Camera

STORAGE CASES : Foam lined, custom fit, protective storage cases with easy tote handles.
