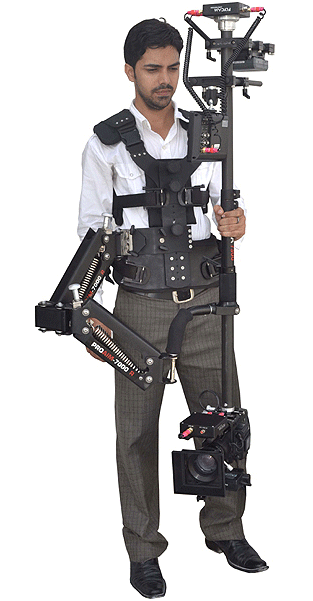

Our Proaim 7300 stabilization system is the right choice at the right time for shooters on the move. Gone are the days of heavy-duty equipment; dollies and track, tripods and spreaders. Forget fluid heads that weigh more than the cameras they support, all the other associated production tools, additional personnel and the truck to carry it. cinecity PROAIM 7300 does it all. A marvel of technology that makes for easy set up, captures movie type shots with little effort and right now, is an absolute ‘best buy'.

• FLYCAM 7300 Stabilizer
• PROAIM-7000 Reverse Arm
• DV Operator vest
• Tripod stand
• Docking Bracket
• LCD Monitor
• Wire Organizer Clamp
• Screw Tighting Key



COMPLIMENTARY ITEMS:

EXCLUSIVE of Battery.Used for demo purpose only

• Effortless extended shooting
• No more shakycam shots
• Purchase for the cost of a weeks rental
• Stronger than aluminum black anodized construction
• Designed in comfort for sustained shooting periods
• Rock steady free hand tracking shots
• All inclusive kit with
• Dual section arm
• DV operator vest
• Flycam 7300
• 7” LCD monitor with sunshade
• Hot shoe mount, HDMI cable
• A/C adaptor
• Complimentary tripod stand and Docking bracket

• Double Section Articulated Arm crafted from high-grade aluminum
• Black powder coated to reduce reflections
• High Tension balancing spring for dv/hdv cameras weighing up to 9kg
• PROAIM-7000 Reverse Arm has a lifting range up to 25" for both arms
• Tool-free one-touch lift adjustment for each section
• Designed for standard and low angle shots
• PROAIM-7000 Reverse Arm boom range is 25"s
• PROAIM-7000 Reverse Arm gives excellent results at any level of adjustment
• Arm can be conveniently mounted either right or left
• Front Mounting Arm - distributes the weight of the sled,camera and arm
• Steel Arm-Vest Connecting Socket

	DV OPERATOR VEST: Front mounting design, lightweight and durable Comfort fit with 8 adjustable straps, extra shoulder, chest and hip padding Fits most body types Tool free body to arm adjustments-front, back and side to side Fully breathable lining for cool
CHEST PLATE: Black anodized over aluminum chest plate Vertical height adjustment according to operators size Locked by stainless steel screws Remains set after initial adjustments for camera operator
FRONT ARM MOUNTING SYSTEM: Versatile and lightweight the front arm mount eases stress on the body DV operator Vest uses self-locking aluminum snap-locks for easy tension release within seconds
	UNIVERSAL BASE PLATE: 1/4 & 3/8 mounting slots accommodates most cameras Horizontal and vertical axis adjustment Quality machined construction
GIMBEL SPECIFICATIONS: Wheelbarrow bearings provide smooth rotational control Grip swivels left and right with vertical up and down movement through use of the angle bracket Non reflective coating
	CAMERA BALANCE: 8 weight stabilizing system Aluminum construction in 4 cups Discs average 2.8 ounces each Add or remove as required Easy attachment Combined simplicity & functionality that works
JUNCTION BOX: A newly added splitter component can power LCD monitors, camera lights, microphones and more. It even has a three-digit voltage meter for quick reading of your reserve power supply.

NOTE FOR BUYER: If your requirement is for an AB battery plate instead of our standard ‘V’ mount, please inform us when placing your order.

For demonstration purpose only

7" LCD MONITOR KIT:

Our 7'' pro HD-LCD monitor kit is designed for use as an external camera output video display. When not using the viewfinder, focus and framing can be adjusted by viewing the hi-res screen. Light in weight, low power consumption and packaged priced, it is the ideal companion to any pro video camera including DSLR, DV and HDV video cameras.

HIGHLIGHTS:

16.9/4:3 display modes at the flick of a switch

LCD MOUNT APPLICABILITY Bottom and rear mount capability with ¼" assembly

BATTERY & BATTERY MOUNT Battery and mount provided for continuous run time of 2-3 hours

Sunshade flags (barn doors) made of pvc materials . less then 5mm thickness easy to attach and carry

Use 1/4 Thread mounting hole to attach the monitor to a camera or variety of mounting device.

• Easy attach sunshade made of lightweight PVC
• Battery charger
• LCD mount
• HDMI cable


A collapsible tripod stand for solid support yet light in weight.

TRIPOD STAND: A collapsible tripod stand that is easy to transport. The legs of tripod stand can be easily folded so that you can store this complete stand in a little space. This tripod stand is a durable tripod with traditional altitude. It is perfect for both professional / amateur videographer and the consumer who is looking for a high quality tripod

Holds the weight whole of Stabilizing systems

DOCKING BRACKET: DOCKING BRACKET is made of all allumiunium black anodized. The docking bracket is solid enough to hold the weight of stabilizing system. You can also place the suspension arm as well as both Allen keys on this bracket that are used to adjust the system.

To make our PROAIM-7300 kit even more of a value added package The cinecity will also include a free lightweight, collapsible tripod stand and a black anodized aluminum, docking bracket. An all-inclusive, quality camera stabilizing system for professionals and amateurs alike who demand the very best from their production equipment. And the very best price as well.

WIRE ORGANIZER CLAMPS:
