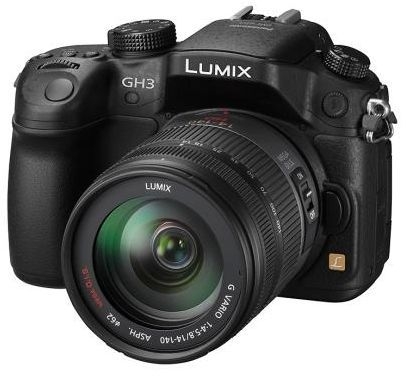

Panasonic DMC-GH3 14-140mm

TYPE	Type				Digital Single Lens Mirrorless camera
	Recording Media				SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards)
	Image Sensor Size				17.3 x 13.0 mm (in 4:3 aspect ratio)
	Lens Mount				Micro Four Thirds mount
IMAGE SENSOR	Type				Live MOS Sensor
	Total Pixels				17.20 Megapixels
	Camera Effective Pixels				16.05 Megapixels
	Color Filter				Primary color filter
	Dust Reduction System				Supersonic wave filter
RECORDING SYSTEM	Recording File Format				Still Image: JPEG (DCF, Exif 2.3), RAW MPO (When attaching 3D lens in Micro Four Thirds System standard) Motion Image: AVCHD Ver 2.0 compliant (AVCHD Progressive), MPEG4-AVC (H.264). (MOV, MP4)
	Aspect Ratio				4:3, 3:2, 16:9, 1:1
	Image Quality				RAW, RAW+Fine, RAW+Standard, Fine, Standard MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard)
	Color Space				sRGB, Adobe RGB
	File Size (Pixels)	Still Image			[4:3] 4,608 x 3,456 (L), 3,264 x 2,448 (M), 2,336 x 1,752 (S), 1,824 x 1,368 (When attaching 3D lens in Micro Four Thirds System standard) [3:2] 4,608 x 3,072 (L), 3,264 x 2,176 (M), 2,336 x 1,560 (S), 1,824 x 1,216 (When attaching 3D lens in Micro Four Thirds System standard) [16:9] 4,608 x 2,592 (L), 3,264 x 1,840 (M), 1,920 x 1,080 (S), 1,824 x 1,024 (When attaching 3D lens in Micro Four Thirds System standard) [1:1] 3,456 x 3,456 (L), 2,448 x 2,448 (M), 1,744 x 1,744 (S), 1,712 x 1,712 (When attaching 3D lens in Micro Four Thirds System standard)
		Motion Image	MOV*1	NTSC	[Full HD] 1,920 x 1,080, 30p (sensor output is 30p, 72Mbps (ALL-Intra)) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 72Mbps (ALL-Intra)) [HD] 1,280 x 720, 60p (sensor output is 60p, 72Mbps (ALL-Intra)) [Full HD] 1,920 x 1,080, 60p (sensor output is 60p, 50Mbps (IPB)) [Full HD] 1,920 x 1,080, 30p (sensor output is 30p, 50Mbps (IPB)) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 50Mbps (IPB))
				PAL*3	[Full HD] 1,920 x 1,080, 25p (sensor output is 25p, 72Mbps (ALL-Intra)) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 72Mbps (ALL-Intra)) [HD] 1,280 x 720, 50p (sensor output is 50p, 72Mbps (ALL-Intra)) [Full HD] 1,920 x 1,080, 50p (sensor output is 50p, 50Mbps (IPB)) [Full HD] 1,920 x 1,080, 25p (sensor output is 25p, 50Mbps (IPB)) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 50Mbps (IPB))
			MP4*2	NTSC	[Full HD] 1,920 x 1,080, 60fps (sensor output is 60p, 28Mbps) * Firmware must be updated to the latest version 1.1. http://panasonic.jp/support/global/cs/dsc/download/index.html [Full HD] 1,920 x 1,080, 30fps (sensor output is 30p, 20Mbps) [HD] 1,280 x 720, 30fps (sensor output is 30p, 10Mbps) [VGA] 640 x 480, 30fps (sensor output is 30p, 4Mbps)
				PAL*3	[Full HD] 1,920 x 1,080, 50fps (sensor output is 50p, 28Mbps) * Firmware must be updated to the latest version 1.1. http://panasonic.jp/support/global/cs/dsc/download/index.html [Full HD] 1,920 x 1,080, 25fps (sensor output is 25p, 20Mbps) [HD] 1,280 x 720, 25fps (sensor output is 25p, 10Mbps) [VGA] 640 x 480, 25fps (sensor output is 25p, 4Mbps)
			AVCHD Progressive*2	NTSC	[Full HD] 1,920 x 1,080, 60p (sensor output is 60p, 28Mbps)
				PAL*3	[Full HD] 1,920 x 1,080, 50p (sensor output is 50p, 28Mbps)
			AVCHD*2	NTSC	[Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 24Mbps) [Full HD] 1,920 x 1,080, 60i (sensor output is 30p, 24Mbps) [Full HD] 1,920 x 1,080, 60i (sensor output is 60p, 17Mbps)
				PAL*3	[Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 24Mbps) [Full HD] 1,920 x 1,080, 50i (sensor output is 25p, 24Mbps) [Full HD] 1,920 x 1,080, 50i (sensor output is 50p, 17Mbps)
	Continuous Recordable Time (Motion Image)*4				AVCHD: Approx. 240 min with H-HS12035 / Approx. 220 min with H-VS014140
	Actual Recordable Time (Motion Image)*4				AVCHD: Approx. 120 min with H-HS12035 / Approx. 110 min with H-VS014140
	Flicker Reduction				[1/50] [1/60] [1/100] [1/120] / OFF
	Time Code (Motion Image) (Except MP4)				ON / OFF, Count Up: Rec Run / Free Run selectable, Time Code Mode: Drop Frame / Non-drop Frame selectable (NTSC only)
	Wi-Fi				IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
VIEWFINDER	Type				OLED Live View Finder (1,744K dots)
	Field of View				Approx. 100%
	Magnification				Approx. 1.34x / 0.67x (35 mm camera equivalent)
	Eye Point				Approx. 21 mm from eyepiece lens
	Diopter Adjustment				-4.0 - +4.0 (dpt)
	Auto Eye Sensor				Yes
FOCUS	Type				Contrast AF system
	Focus Mode				AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
	AF Mode				Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint (Full area touch is available)
	AF Assist Lamp				YES (ON / OFF)
	AF Lock				Yes (AF/AE LOCK button)
	Others				Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF, Touch Pad AF, Touch shutter, Touch MF Assist, Shutter AF, Half Press Release
EXPOSURE CONTROL	Light Metering System				144-zone multi-pattern sensing system
	Light Metering Mode				Intelligent Multiple / Center Weighted / Spot
	Metering Range				EV 0 - 18 (F2.0 lens, ISO100 equivalent)
	Exposure Mode				Program AE / Aperture Priority AE / Shutter Priority AE / Manual
	ISO Sensitivity (Standard Output Sensitivity)				Auto / Intelligent ISO / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3, 1 EV step) (Extended ISO125 - less under 200, ISO more over 12800 - 25600 available) (Up to ISO3200 in Auto)
	Exposure Compensation				1/3 EV Step, ±5 EV (±3 EV for motion image)
	AE Lock				AF/AE LOCK button
	AE Bracket				3, 5, 7 frames, in 1/3, 2/3 or 1 EV Step, single / burst
WHITE BALANCE	White Balance				Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting
	White Balance Adjustment				Blue/amber bias, Magenta/green bias
	Color Temperature Setting				2,500 K - 10,000 K in 100 K
	White Balance Bracket				3 exposures in blue/amber axis or in magenta/green axis
SHUTTER	Type				Focal-plane shutter
	Shutter Speed				Still Images: 1/4,000 - 60 and Bulb (Approx. 60 minutes) Motion Images: 1/16,000 - 1/30 (NTSC), 1/16,000 - 1/25 (PAL)
	Self Timer				10 sec, 3 images after 10 sec, 2 sec
	Remote Control				Remote control with Bulb function by DMW-RSL1 (Optional)
SCENE GUIDE	Still Image				Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Clear Night Portrait / Soft Image of a Flower / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
	Motion Image				Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Clear Night Portrait / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
BURST SHOOTING	Burst Speed				SH: 20 frames/sec (4M), H: 6 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View)
	Number of Recordable Images				18 images (When there are RAW files with the particular speed) Unlimited consecutive shooting (When there are no RAW files) (Depending on memory card size, battery power, picture size, and compression)
FLASH	Built-in Flash				TTL Built-in-Flash, GN12.0 equivalent (ISO100 · m), GN17.0 (ISO200 · m), Built-in Pop-up (Reference)
	Flash Mode				Auto, Auto / Red-eye Reduction (when iA, iA+), Forced ON, Forced ON / Red-eye Reduction, Slow Sync., Slow Sync. / Red-eye Reduction
	Synchronization Speed				Less than 1/160 second
	Flash Output Adjustment				1/3 EV Step ±3 EV
	Flash Synchronization				1st Curtain Sync., 2nd Curtain Sync.
	Synchronization for Flash Dimming and Exposure Compensation				Yes (ON / OFF)
	Flash Sync Socket				Yes
MONITOR	Type				OLED monitor with static touch control
	Monitor Size				Free-angle 3.0 inch (7.5 cm) / 3:2 Aspect / Wide-viewing angle
	Pixels				614K dots
	Field of View				Approx. 100%
	Monitor Adjustment				Brightness (7 levels), Color (7 levels), Red-Green (11 levels), Blue-Yellow (11 levels)
LIVE VIEW	Digital Zoom				2x, 4x
	Extra Tele Conversion				Still Image: Max. 2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) Motion Image: 2.4x, 3.6x, 4.8x (Magnification ratio depends on the recording quality and aspect ratio.)
	Other Functions				Guide Lines (3 patterns) Real-time Histogram
LEVEL GAUGE					Yes
VERTICAL SHOOTING DETECTION					Yes
PHOTO STYLE	Still Image and Motion Image				Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom
CREATIVE CONTROL	Still Image				Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / Soft Focus / Star Filter / One Point Color
	Motion Image				Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / One Point Color
CREATIVE VIDEO MODE	Exposure Mode				Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure
	Slow and Fast Motion				40% / 48% / 80% (Records 0.4 times, 0.48 times, 0.8 times slower) 160% / 200% / 300% (Records 1.6 times, 2.0 times, 3.0 times faster) (1,920 x 1,080, 24p, 24Mbps in MOV, MP4, AVCHD)
PLAYBACK	Playback Mode				Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only / 3D / Category Selection / Favorite, duration & effect is selectable), Playback Mode (Normal / Picture / Video / 3D Play / Category / Favorite), Title Edit, Text Stamp, Video Divide, Resize, Cropping, Rotate, Favorite, DPOF Print Set, Protect, Face Recognition Edit
IMAGE PROTECTION / ERASE	Protection				Single / Multi, Cancel
	Erase				Single / Multi / All / Except Favorite
PRINT	Direct Print				PictBridge compatible
INTERFACE	USB				USB 2.0 High Speed
	HDMI				mini HDMI TypeC Video: Auto / 1080p / 1080i / 720p / 480p (576p in PAL system) Audio: Dolby® Digital
	Audio Video Output				Monaural Type, NTSC / PAL, NTSC only for North America * Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
	Remote Input				φ2.5mm for remote
	External Microphone Input				φ3.5mm for external microphone
	Headphone Output				φ3.5mm for headphone
	Microphone				Stereo, Wind-cut: OFF / Low / Standard / High / Auto
	Speaker				Monaural
LANGUAGE	OSD Language				English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Russian, Chinese (Traditional), Chinese (Simplified), Dutch, Thai, Korean, Turkish, Portuguese, Arabic, Persian, Japanese, Swedish, Danish, Finnish, Greek, Vietnamese * Check the website of Panasonic sales company in your country / region or ask customer support for details of the OSD language available on the products sold in your country / region.
POWER	Battery				Li-ion Battery Pack (7.2V, 1,860mAh) (Included) Battery Charger
	Battery Life (CIPA Standard)*5				Approx. 540 images with H-HS12035 Approx. 500 images with H-VS014140
DIMENSIONS / WEIGHT	Dimensions (W x H x D)				132.9 x 93.4 x 82.0 mm / 5.23 x 3.68 x 3.23 inch (excluding protrusions)
	Weight				Approx. 550 g / 19.40 oz (SD card, Battery, Body) Approx. 470 g / 16.58 oz (Body only) Approx. 855 g / 30.16 oz (SD card, Battery, H-HS12035 lens included) Approx. 1,010 g / 35.62 oz (SD card, Battery, H-VS014140 lens included)
OPERATING ENVIRONMENT	Operating Temperature				0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity				10%RH to 80%RH
STANDARD ACCESSORIES	Software				PHOTOfunSTUDIO 8.5 PE, SILKYPIX® Developer Studio 3.1 SE, LoiLoScope (trial version)
	Standard Accessories
	DMC-GH3 Kit Body, Battery Charger (included AC cable), Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM DMC-GH3A Lens Kit Body, LUMIX G X VARIO 12-35mm / F2.8 ASPH. / POWER O.I.S. (H-HS12035), Lens Cap, Lens Hood, Lens Rear Cap, Battery Charger (included AC cable), Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM DMC-GH3H Lens Kit Body, LUMIX G VARIO HD 14-140mm / F4.0-5.8 ASPH. / MEGA O.I.S. (H-VS014140), Lens Cap, Lens Hood, Lens Rear Cap, Battery Charger (included AC cable), Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM
OPTIONAL ACCESSORIES	External Flash (Optional)				DMW-FL360L (Optional), Wireless channel: 1ch / 2ch / 3ch / 4ch
	External Microphone (Optional)				DMW-MS2 (Optional), Gun / Stereo selectable
	Battery Grip (Optional)				DMW-BGGH3 (Optional)

LUMIX G X VARIO 12-35mm /F2.8 ASPH. / POWER O.I.S. (H-HS12035)

LUMIX G VARIO HD 14-140mm / F4.0-5.8 ASPH. / MEGA O.I.S. (H-VS014140)

* Note: SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats.

• The DMC-GH3 is compatible with UHS-I standard SDHC/SDXC Memory Cards.

The SDHC Memory Card can be used only if the SDHC logo is indicated on the equipment or in the operation manual. It cannot be used with equipment that supports only the SD Memory Card.

The SDXC Memory Card can be used only if the SDXC logo is indicated on the equipment or in the operation manual. It cannot be used with equipment that supports only the SD Memory Card and SDHC Memory Card.

*1 Use a card with SD Speed Class with "Class10"

*2 Use a card with SD Speed Class with “Class 4” or higher.

•SD speed class is the speed standard regarding continuous writing.
•SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats.
•If the computer being used does not support SDXC Memory Cards, a message prompting you to format may appear. (Doing so will cause recorded images to be erased so do not choose to format.) If the card is not recognized, please refer to the below support site.

*3 Motion images can be recorded continuously for up to 29 min 59 sec in European PAL areas.

*4 These are standard times taken at a temperature of 23°C (73.4°F) and a humidity of 50%RH. The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON]/[OFF], starting/stopping recording, zoom operation etc.

*5 Shooting conditions: 23°C with 50%RH humidity; Monitor on; using a Panasonic SD Memory Card (4 GB); Using the supplied battery; Using the supplied lens; Starting recording 30 seconds after the camera is turned on (When the optical image stabilizer is set to [Normal]) ; Recording once every 30 seconds with full flash every second recording; Turn the camera off every 10 recordings. The number of recordable pictures varies depending on the recording interval time. If the recording interval time becomes longer, the number of recordable pictures decreases. CIPA is an abbreviation of “Camera & Imaging Products Association”.

•Weight and dimensions shown are approximate. •Design, functions, and specifications are subject to change without notice. •Some sample images are simulated. •Some accessories are not available in some countries. •The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder. •All other company and product names are trademarks of their respective corporations.

•iMovie, Mac, and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. The Works with iMovie logo is a trademark of Apple Inc.

•The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

•AVCHD Progressive", "AVCHD", the "AVCHD Progressive" Logo and the "AVCHD" Logo are trademarks of Panasonic Corporation and Sony Corporation.

•Dolby and the double-D symbol are trademarks of Dolby Laboratories.
